Gazebo 4 by 6 m (258,3 SqF Ukrainian stile, "Ukrainian Gazebo"
article:WG-001-4x6
16 100 CAD

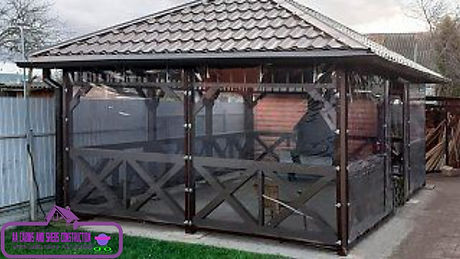

Gazebo 4 by 6 m Ukrainian stile, "Ukrainian Gazebo"
Building area24 m2(258,3 SqF)
External dimensions : 4x6 m
The shape of the gazebos rectangular
Capacity:15 people.
Foundation - concrete blocks,Included in the price
Barbecue zone: possible
Technical specifications
Material:
The structure is made of coniferous wood (spruce, pine)Grade on the front side: AB. Material-solid dry planed chamber drying
Foundation:Block type made of concrete blocks (it may be necessary to prepare it from crushed stone and sand)
If the soil is loamy, clayey, peaty or swampy, installation on blocks is not desirable.In this case, it is preferable to use screw piles, a sand and gravel cushion, a ready-made platform - paving slabs or paving stones on a monolithic slab, a ribbon foundation.
Finishing floor: deck floorboard, not less than 35 mm thick, planed on four sides with chamfers
Socle trim: the lower binding is sheathed by default in 1 row with a board of 140 × 20 mm or 190×20 mm
Clearance between floor boards in open buildings
To improve natural ventilation in the underground space between the floor boards, to allow water to drain and compensate for temperature deformations, a gap of approximately 5-10 mm is required.
Ceiling and overhangs
The ceiling is not hemmed, the rafter system is visible.
Overhangs are not hemmed in.
Frame support posts 6" x 6"
Racks made of solid wood (not glued), cracks are allowed, both before installation and after, which do not affect the reliability and functionality of the structure (unfortunately, any tree cracks-baths, log cabins, chopped gazebos, wells, etc — - moisture looks for a way out when drying only through cracks-fix the data by nature features of the tree, unfortunately, are not possible)
Truss system:
The roof is mounted on rafters 2" × 8"
The cross section is selected at the design stage
Crate:
Planed board 1" × 6"
Roof material: shengles
Roof color:
Red, Green, Brown, Gray or color to choose from.
Painting process:
Fire protection (colorless) – lower binding, logs, floor and plinth.
Decorative wood protection compound in 2 layers if necessary.
Previously, wooden parts are sanded.
Steps:
Standard wooden entrance height and width
Contract
It is concluded upon arrival at the site. Full package of documents
Guarantee
Service life: 15 years
Warranty: 12 months
Claim service period - 1 year
We will carefully assemble a house for you right on your site, assembly and installation are included in the price. It is very beneficial to do business with us. We provide a free 10-year warranty because we know that our buildings are of high quality and reliable. Just click on the button below and leave a message indicating the article of the building or call the phone with the name of the employee.
Let us introduce some gazebos u can choose as Idea for yor yards or you can send us you own project for reason your wishes. It's could be a picture,or ready blue prints, you can even explain for our project manager what you exactly need, and we will trying to provide it's for you in 3D forms with maximum closest estimate for it. IT'S FOR FREE.
We will carefully assemble a house for you right on your site, assembly and installation are included in the price. It is very beneficial to do business with us. We provide a free 10-year warranty because we know that our buildings are of high quality and reliable. Just click on the button below and leave a message indicating the article of the building or call the phone with the name of the employee.
